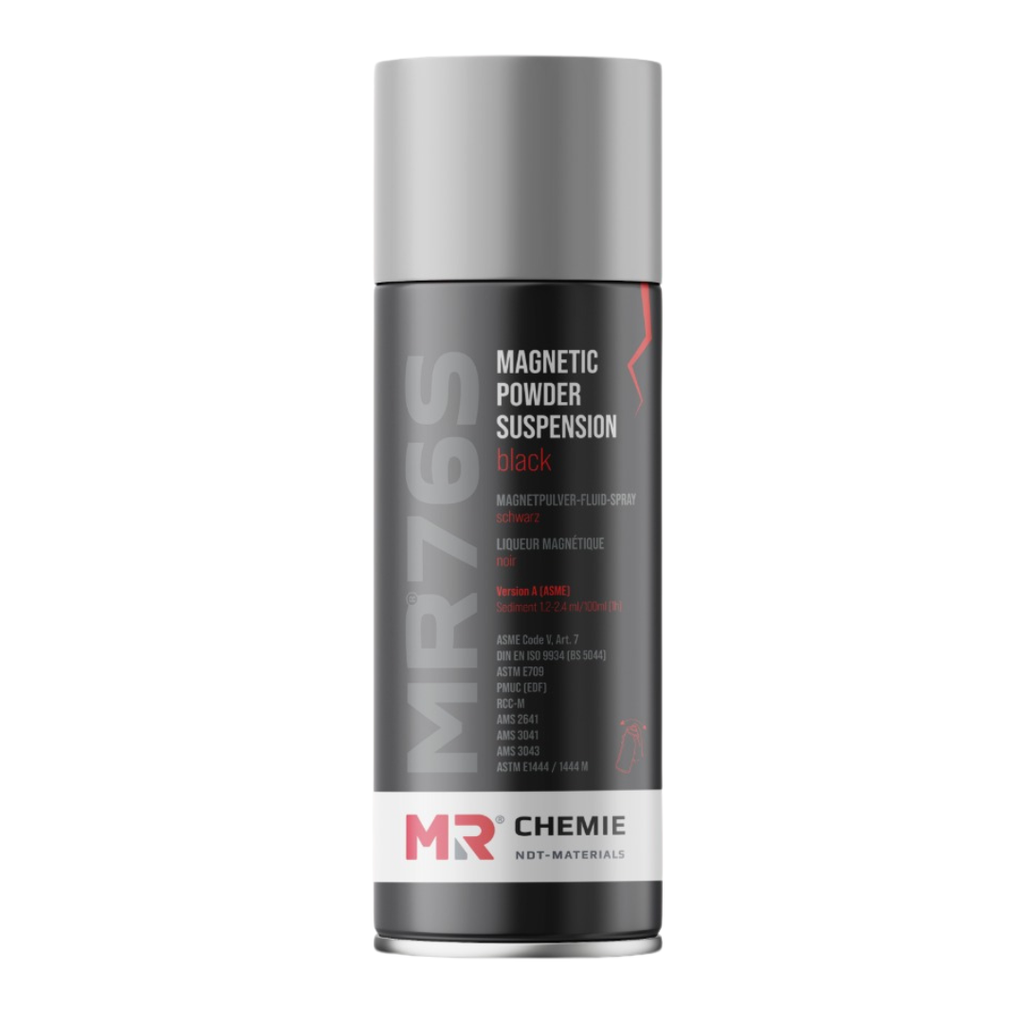

MR 76S Magnetic Powder Suspension – Blackt (10 per Carton)
$115.00 AUD
Shipping calculated at checkout.
MR®76S is a highly sensitive oil-based magnetic particle suspension aerosol that serves to indicate dark, clear, strong background-free cracks when performing coloured magnetic particle inspection.

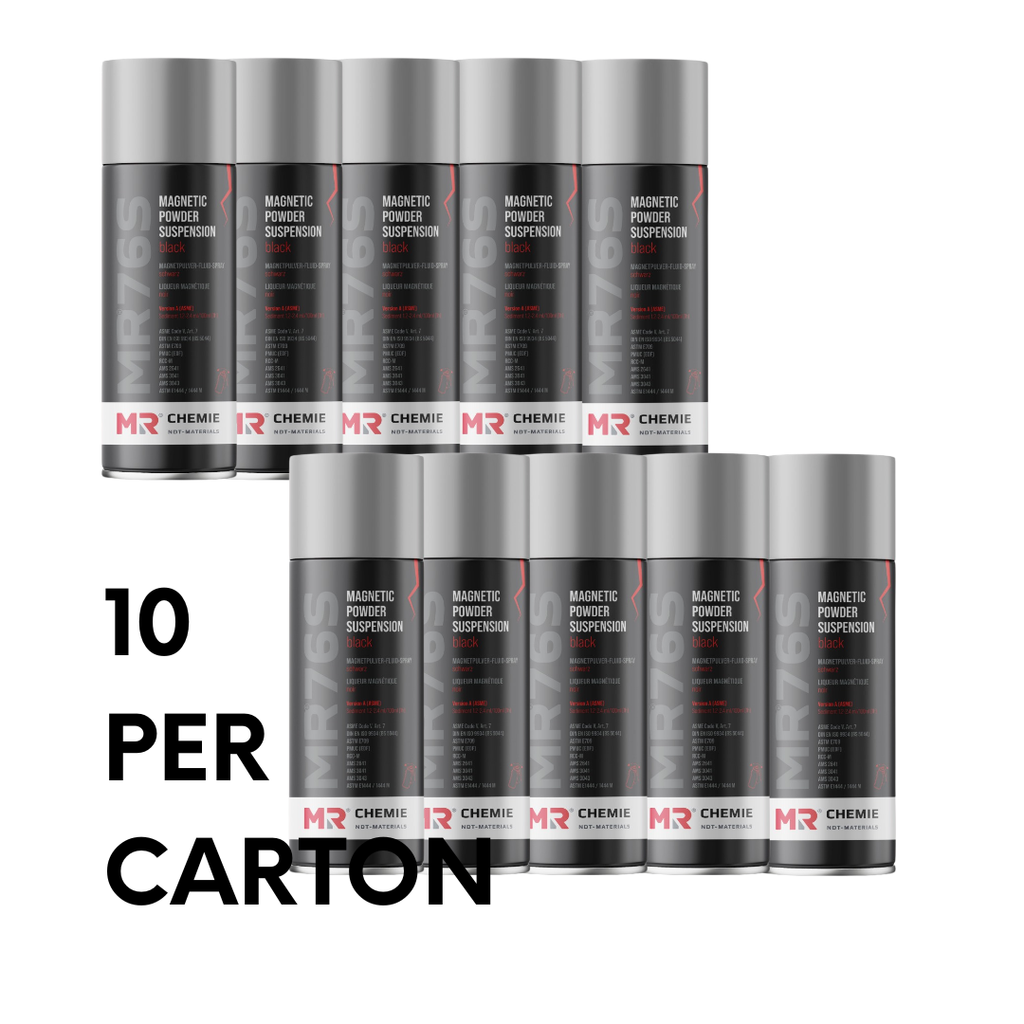

(10x Aerosol Cans Per Carton)
- Super wetting technology (SWT)
- Excellent retentivity of magnetic particle on vertical jobs
- Dark black, clear indications under white light
- Heavy particle build up, excellent particle mobility
- Free of aromatics, oil-based
- Controlled application with wide spray pattern
- Low-odour
- Low-toxicity
- Toluene free
| Properties |
Appearance – black oily liquid Chemical Composition – mixture of oil; additives and black magnetic powder Basis – hydrocarbon Odour – characteristic |
| Approvals |
ASME Code V; Art. 7 DIN ISO 9934 (BS 5044) ASTM E 709 RCC-M PMUC (EDF) AMS 2641 (Type 1) AMS 3041 AMS 3043 ASTM E1444/1444M |
| Particle Size |
1 – 3 µm |
| Sediment |
Version A – 1.2 – 2.4 ml/100ml (1h) according to ASME Version D – 0.3 – 0.4 ml/100ml (1h) Version S – 0.4 – 0.8 ml/100ml (1h) according to Produits et Matériaux Utilisables en Centrales Version W – 0.8 – 1.2 ml/100ml (1h) |
| Recommended Usage |
NDT Method – Magnetic Particle Testing Area Coverage ~ 6 sq m (400ml nett Aerosol can) Usage Temperature – 41°F to 131°F / +5 °C to +52 °C Storage Temperature – 41°F to 113°F / +5 °C to +45 °C |
